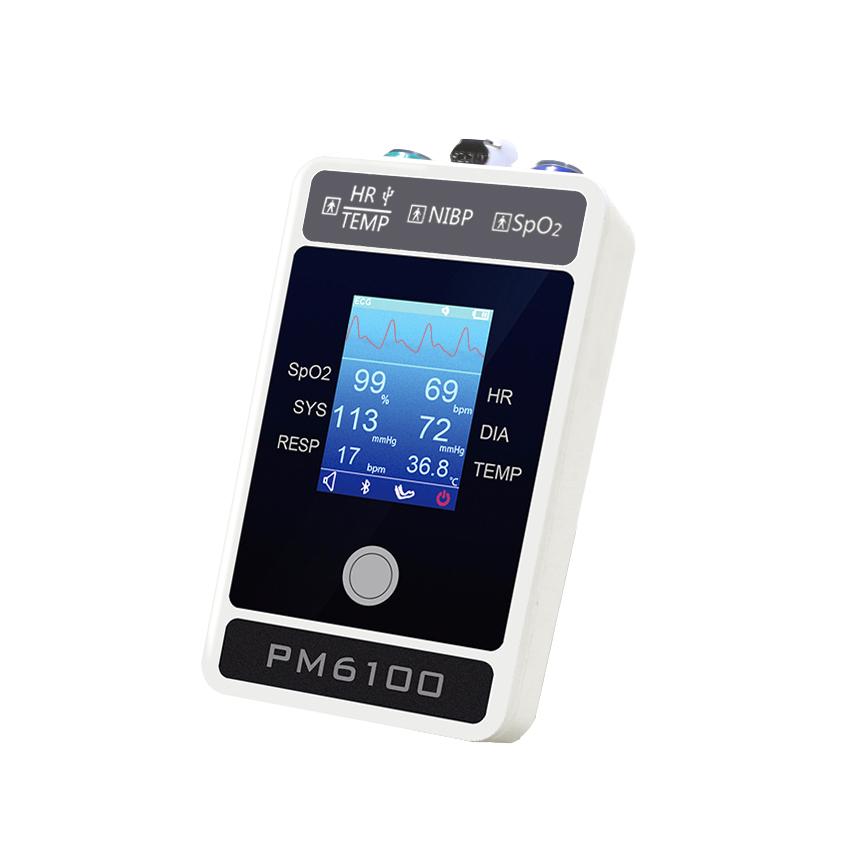

Berry Touchscreen multi-parameter patient monitor
Multi patient monitor integrates the functions of parameter measurement, waveform moitoring, etc .Its color TFT liquid crystal display is able to show patient parameters and waveform clearly, The monitor also features compact size, lightweight, easy-to-carry handle and built-in battery, which make it portable in clinic, ward, even at home.
This monitor is capable of monitoring parameters: ECG(Electrocardiograph),HR(heart rate),NIBP(noninvasive blood pressure),SPO2,PR(pulse rate),TEMP(body temperature).
The One-Button-Design make the monitor to be a easy-to-use system, so you can perform the operations conveniently. Besides, this monitor can be connected with the other smart terminals such as PC, iphone and Android phones.
Product Feature
1.Compact size, lightweight, easy-to-carry handle.
2.Result and waveform are shown on the TFT in real time
3.Low-power dissipation
4.Built-in battery
5.Support both Bluetooth 3.0 and BLE 4.0 communication.
Technical Specifications
ECG:
Waveform: Lead I
Band width 0.05Hz-100Hz(3dB) diagnose mode
1-40Hz monitor mode
0.1-25Hz operation mode
Resp:
Chest impedance method
Scope:0 bpm to 100bpm
Accuracy:±1bmp
Temp:
Type: Vascular/Surface temperature
Scope:20℃ -50℃
Accuracy:±0.2℃
NIBP:
Detection scope:
Systolic blood pressure:4kPa-34kPa(30-255mmHg)
Diastolic pressure:2kPa-29.3kPa(15-220mmHg)
Mean pressure:2.7kPa-31.3kPa(20-235mmHg)
Detection accuracy: Static pressure:±4mmHg
Heart rate
Scope: 15bpm to 300bpm
Accuracy:±1bpm
Spo2
Detection scope:35%-100%
Accuracy:±1% 90%-100%
±2 70%-89%
